Overview

A process is a program in execution, it is an entity maintained by the operating system.

A process consists of the following memory regions:

• The text region contains the program instructions itself.
• The stack contains space for local variables and arguments of functions

• The data region contains space for global and/or static variables
• The heap contains space for dynamically allocated variables (memory created at runtime with malloc)

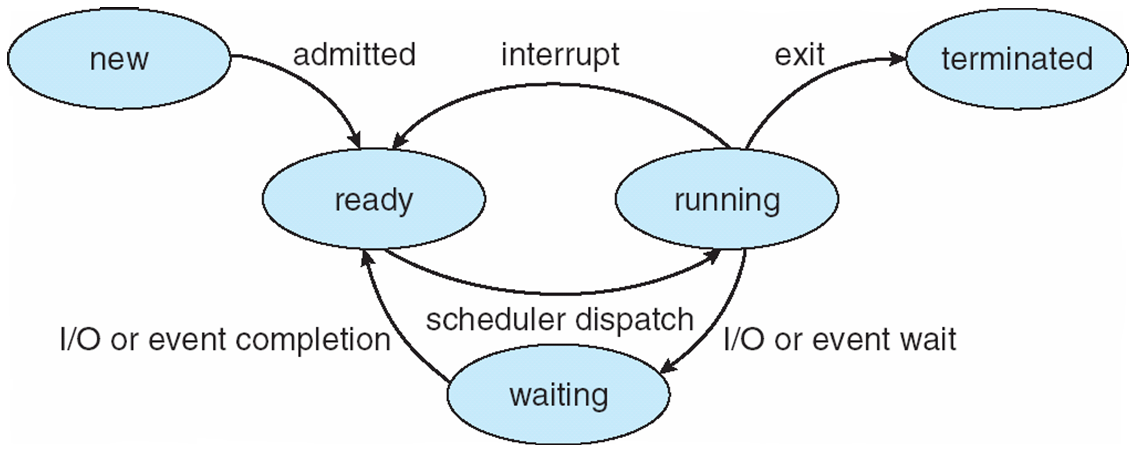

A process can have the following states (in a time-sharing OS):

Scheduling

This involves the OS selecting what processes to run on the CPU. The goal is to maximize CPU utilization in a multiprogramming OS.

The following structures are used to manage processes in the OS.

• Job Queue - This is the set of all processes in a system
• Ready Queue - This is the set of all processes residing in memory, and ready to execute
• Device Queues - The set of processes waiting for an I/O device

Long Term Scheduler

• Selects processes to be brought into ready queue
• Controls the degree of multiprogramming
• Controls the mix of CPU-bound and I/O-bound processes
• Can take longer periods of time to schedule processes or "jobs"
• Infrequently invoked

Short Term Scheduler

• Selects the processes to be executed next and allocates CPU
• Used to limit scheduling overhead
• Frequently invoked

Creation

Processes can create other processes. There is a singular root process for any OS called the primordial process. A process that creates another one is called the parent process. The created process is called the child process.

Processes can choose to share regions of memory, Unix-like systems do not do this and each parent-child process has its own context.

Parent-child processes also execute concurrently. In Unix-like systems the wait() syscall can be used in the parent to wait for the child to complete.

In Unix-like systems, creating a child process copies the entire context of the parent process and continues execution from the creation of the child process in the child process.

Inter-Process Communications

There are two main ways processes can communicate:

• Shared memory
• Message passing

Shared Memory

Shared memory involves sharing some region of memory between processes. Each process can read and write to the memory region. This is typically a faster method of sharing data.

The following can be implemented for shared memory

• System-wide sharing, or anonymous name
• Restricting read, write, access
• Dealing with race conditions (atomic, synchronized access)

The following syscalls are used on Unix:

• shmget - Create some share memory space
• shmat - Add the share memory to the process address space
• shmdt - Remove the shared memory from the process address space
• shmctl - Preform some operation on the share memory

Message Passing

Message passing involves sending and receiving messages. Messages are typically not overwritten and is used when sending smaller amounts of data. It is also slower than sharing memory, although it is easier to sync processes.

Message passing provides two basic operations

• send
• receive

Pipes

Also called anonymous pipes, they are the most basic form of IPC on all Unix systems. Pipes are unidirectional meaning they can only be used to communicate one way between processes. They can only be created between parent and child processes or sibling processes. Data is collected in FIFO order.

Pipes use the following syscall(s) in Unix:

• pipe - To create a pipe
• dup2 - To "duplicate" one file descriptor into another

Example:

/* Program used for syncing processes */

main()
{
  char *s, buf[1024];
  int fds[2];
  s = "EECS 678. Pipe program 3\n";

  /* create a pipe */
  pipe(fds);

  if (fork() == 0) {
    /* child process. */
    printf("Child line 1\n");
    read(fds[0], s, strlen(s));
    printf("Child line 2\n");
  } else {
    /* parent process */
    printf("Parent line 1\n");
    write(fds[1], buf, strlen(s));
    printf("Parent line 2\n");
  }
}

FIFO

Also called named pipes, these are much more powerful than anonymyous pipes. These can be used by any number of processes and do not require the parent-child or sibling relationship between processes.

These appear as a special type of file in the file system. They only allow half-duplex communication between processes. This means that each process can choose to read OR write not both.

Message Queues

Message queues uses indirect communication or mailboxes. They are similar to #FIFO in the sense that queues can be used by multiple processes. Processes can also use any number of queues to communicate and both send and receive from a queue.

When sending messages in a queue, you can specify the message type help receivers identify which type of message to receive from the queue.

Unix Domain Sockets

This is a two-way communication channel. Sockets are a special type of file in Unix-like systems and is mostly used for the server, client model where the server waits for user requests for data or processing. Usually, this utilizes UDP or TCP. Sockets are bi-directional.

The following system calls are used for Unix sockets:

• socket - Create a new Unix socket
• bind - Assign an address to a socket (creates socket file)

• listen - Listen to incoming client requests as a server
• accept - Create a new connected socket from a client

• recv - Retrieve messages from socket
• send - Send message to socket
• close - Close the socket connection

Signals

Programming

Creating Processes

The fork() syscall can be used to create a child process.

int main()
{
     pid_t  ret;
	/* fork another process */
	ret = fork();
	if (ret < 0) { /* error occurred */
	  fprintf(stderr, "Fork Failed");
      exit(-1);
	}
	else if (ret == 0) { /* child process */
	  execlp("/bin/ls", "ls", NULL);
	}
	else { /* parent process */
	  /* parent will wait for the child to complete */
	  wait(NULL);
	  printf("Child Complete");
	  exit(0);
	}
}

Definitions

Process Control Block

The process control block or PCB contains metadata about a process. It is used for scheduling and context switching.

It holds the following information:

• Process state
• Program counter
• CPU registers
• CPU scheduling information
• Memory-management information
• Accounting information
• I/O status information

Context Switching

The process of storing and restoring state of a process on an operating system.

• This only applies to time-shared or multiprogramming OSes
• The context is represented by the PCB

Child Process

A child process is a process which was created by another process. In POSIX systems this can be done with the fork syscall.

Parent Process

A parent process is a process which has spawned another process (child process).

Zombie Process

A zombie process is a child process which has finished execution and is waiting for the parent to collect it's exit status.

Orphan Process

An orphan process is a child process which is still executing even though its parent has finished executing.

Reference

1. Kulkarni, Prasad Various Lectures The University of Kansas 2024
